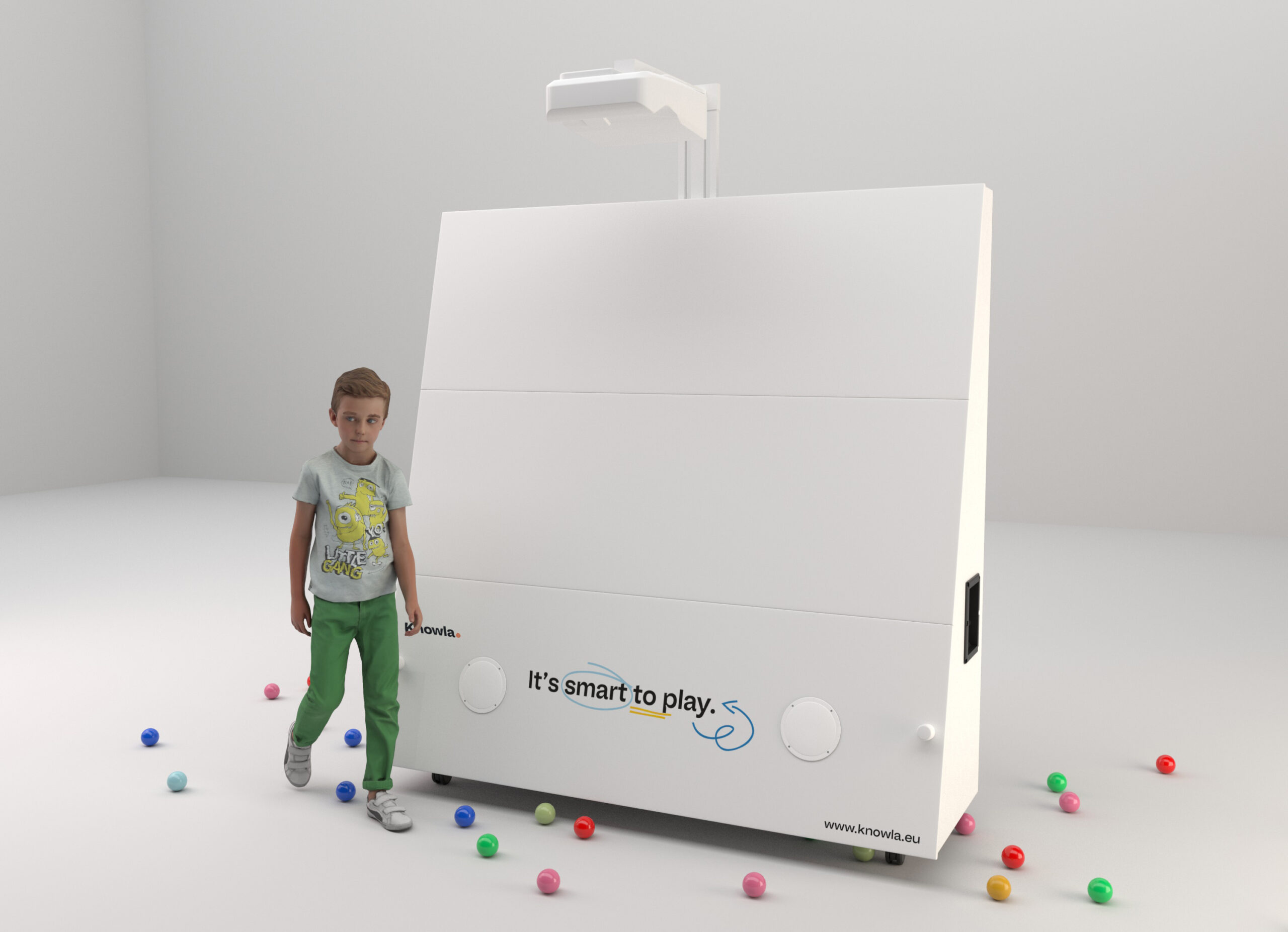

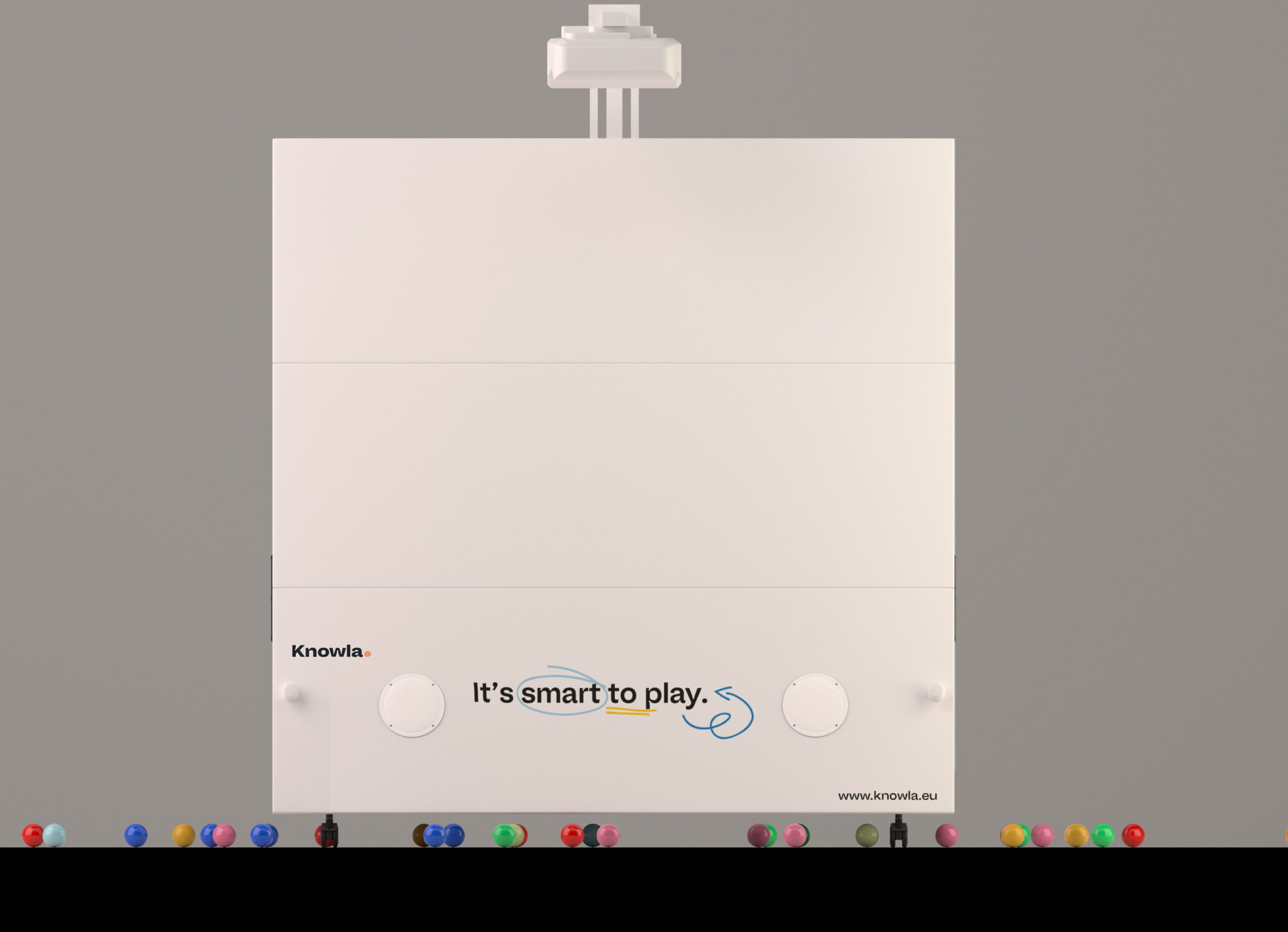

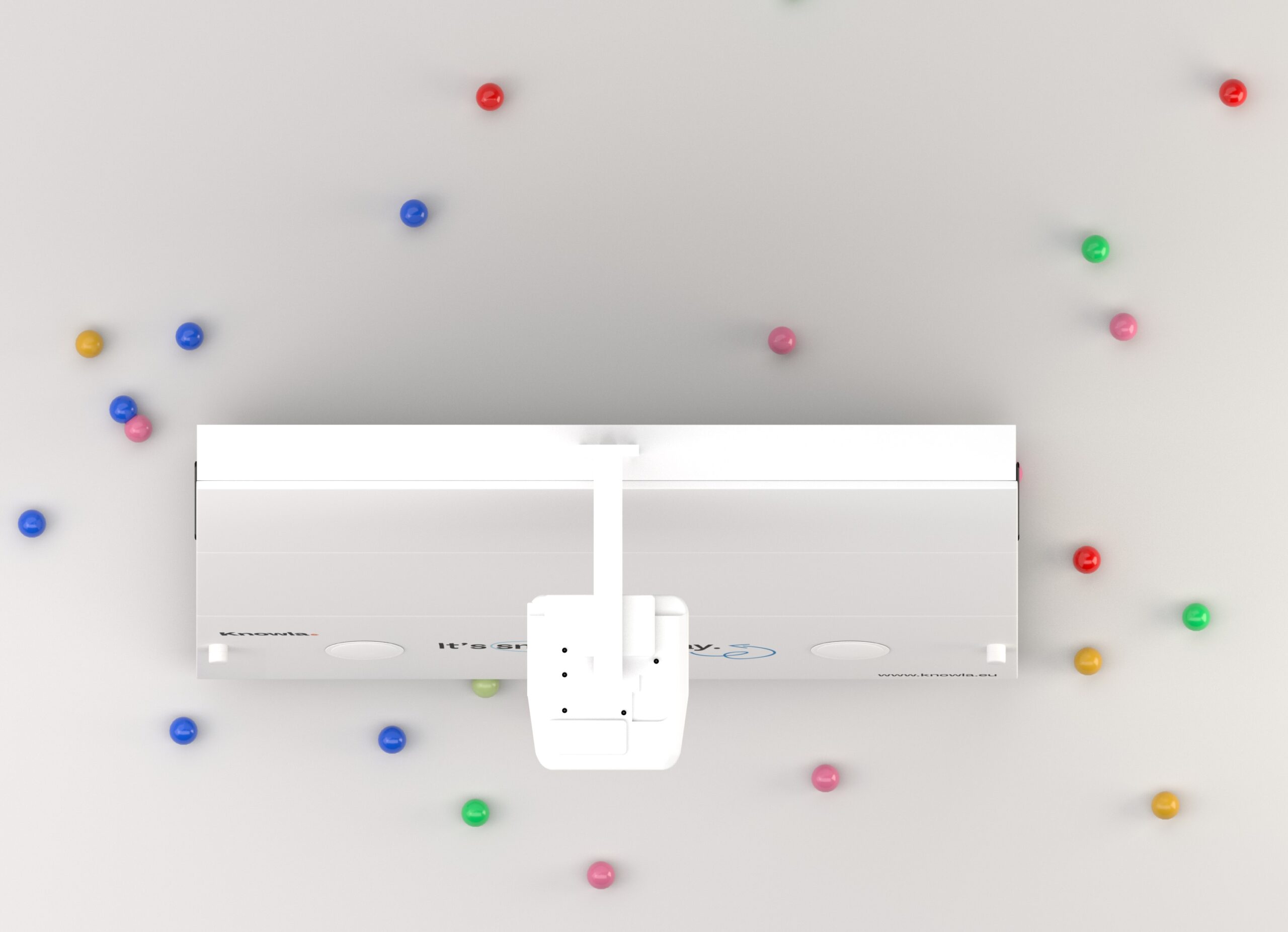

Knowla Wall
A multimedia, interactive device that is the heart of Knowla’s educational entertainment. Equipped with the highest quality short-focus projector Epson with a handle on the boom, Knowla Wall allows you to display a bright, large-format image on an integrated wall. It provides various types of interaction with the displayed image: hitting balls, writing with pens, using the keyboard and touchpad.
Knowla Wall works with the Knowla Planet Fruu application package (another Planets are in preparation), but it can also serve as an independent center for multimedia entertainment.
Included with the device is an application starter pack: Planet Fruu with 120 educational and developmental activities for pre-school and early-school children (I-III).
The content of the package
01
Knowla Wall: an integrated multimedia platform with a built-in computer with WiFi, Epson EB760Wi projector on a boom, interactive screen-wall, sensors and speakers. It can be shipped in parts for self-assembly or be assembled on site.
02
starting planet Fruu with 120 applications
03
50 balls
04
1 interactive pen
05
Epson pilot
06
wireless keyboard with touchpad
07
basket for the balls
The future of education is bright.
Bright image
The projector image is projected from above, there are no shadows, blinding light or blind spots, and the high brightness 3800 lumen laser light source also works when the lighting in the room is bright - there is no need to darken rooms. It is possible to watch from any angle.
Interactions
It allows for interacting with the screen with throwing balls, interactive pens and a wireless keyboard. It uses a unique technology to locate the ball's impact on the displayed image using an ultrasonic sensor system and laser image display technology. It uses a unique technology to locate the ball's impact on the displayed image using an ultrasonic sensor system and laser image display technology.
Multitasking
In addition to performing tasks and activities available in the Knowla application packages, it can be used as a multimedia entertainment center - among others, it facilitates browsing the Internet, presenting materials, projecting films.
Mobile
Thanks to its compact design on wheels, and ease of handling, it can be easily moved from place to place.
Easy-to-use
Intuitive to use, fast to run. It has an easy-to-use interface. Setup is quick and hassle-free. Access to maintenance services, technical support and simple user manuals.
Model
Epson EB-760Wi
Projector type
laser, short-focus
Technology
3LCD
Technology
1024 x 768 XGA (HD)
Contrast
over 2,500,000:1
Brightness
Color light intensity 4,100 lumens – 2,800 lumens (economy mode) in accordance with IDMS15.4 / White light intensity 4,100 lumens – 2,800 lumens (economy mode) according to ISO 21118:2020 standard
Display
vertical display on wall structure
Image quality
projector image displayed from above, without shadows, blinding light or blind spots, visible even in bright rooms
Size of the displayed image
80 inches
Height (with projector)
225 cm
Width
173 cm
Depth
60 cm
Weight
75 kg
Operating system
Windows 10
Technologies used
laser light source, ultrasound (unique impact-response sensors), Epson interactive pens
Types of interaction
1) hitting (ball), 2) writing / drawing (interactive pen)
Number of users
any (singly, in pairs, in groups)
Language of the menu
Polish
Built-in Speaker
16W
Communication
1xHDMI 2.1, 1xUSB A
Standard WiFi
Wi-Fi 5 (802.11a/b/g/n/ac)
Power socket
IEC C13 (230V)
